Generate data for a 3D ALD synthetic sample

import numpy as np
import cupy as cp
import matplotlib.pyplot as plt

from holotomocupy.tomo import R
from holotomocupy.holo import G
from holotomocupy.magnification import M
from holotomocupy.shift import S
from holotomocupy.utils import *

%matplotlib inline

np.random.seed(10)

# Init data sizes and parametes of the PXM of ID16A

n = 256  # object size in each dimension
ntheta = 180  # number of angles (rotations)

center = n/2  # rotation axis
theta = np.linspace(0, np.pi, ntheta).astype('float32')  # projection angles

# ID16a setup
ndist = 4

detector_pixelsize = 3e-6
energy = 17.05  # [keV] xray energy
wavelength = 1.2398419840550367e-09/energy  # [m] wave length

focusToDetectorDistance = 1.208  # [m]
sx0 = -2.493e-3
z1 = np.array([1.5335e-3, 1.7065e-3, 2.3975e-3, 3.8320e-3])[:ndist]-sx0
z2 = focusToDetectorDistance-z1
distances = (z1*z2)/focusToDetectorDistance
magnifications = focusToDetectorDistance/z1
voxelsize = detector_pixelsize/magnifications[0]*2048/n  # object voxel size

norm_magnifications = magnifications/magnifications[0]
# scaled propagation distances due to magnified probes
distances = distances*norm_magnifications**2

z1p = z1[0]  # positions of the probe for reconstruction
z2p = z1-np.tile(z1p, len(z1))
# magnification when propagating from the probe plane to the detector
magnifications2 = (z1p+z2p)/z1p
# propagation distances after switching from the point source wave to plane wave,
distances2 = (z1p*z2p)/(z1p+z2p)
norm_magnifications2 = magnifications2/(z1p/z1[0])  # normalized magnifications
# scaled propagation distances due to magnified probes
distances2 = distances2*norm_magnifications2**2
distances2 = distances2*(z1p/z1)**2

# allow padding if there are shifts of the probe
pad = n//16
# sample size after demagnification
ne = int(np.ceil((n+2*pad)/norm_magnifications[-1]/8))*8  # make multiple of 8

## Read real and imaginary parts of the refractive index u = delta+i beta

from scipy import ndimage

cube_all = np.zeros([ne,ne,ne],dtype='float32')
rr = (np.ones(8)*408*0.2).astype(np.int32)
amps = [3, 2, -3, 1, 2,-4,2]#, -2, -4, 5 ]
dil = [30, 28, 25, 21, 16,10,3]#, 6, 3,1]
for kk in range(len(amps)):
    cube = np.zeros([ne,ne,ne],dtype='bool')
    r = rr[kk]
    p1 = ne//2-r//2
    p2 = ne//2+r//2
    for k in range(3):
        cube = cube.swapaxes(0,k)
        cube[p1:p2,p1,p1] = True
        cube[p1:p2,p1,p2] = True
        cube[p1:p2,p2,p1] = True
        cube[p1:p2,p2,p2] = True
        #cube[p1:p2,p2,p2] = True

    [x,y,z] = np.meshgrid(np.arange(-ne//2,ne//2),np.arange(-ne//2,ne//2),np.arange(-ne//2,ne//2))
    circ = (x**2+y**2+z**2)<dil[kk]**2
    fcirc = np.fft.fftshift(np.fft.fftn(np.fft.fftshift(circ)))
    fcube = np.fft.fftshift(np.fft.fftn(np.fft.fftshift(cube.astype('float32'))))
    cube = np.fft.fftshift(np.fft.ifftn(np.fft.fftshift(fcube*fcirc))).real
    cube = cube>1
    cube_all+=amps[kk]*cube

cube_all = ndimage.rotate(cube_all,52,axes=(1,2),reshape=False,order=1)
cube_all = ndimage.rotate(cube_all,38,axes=(0,1),reshape=False,order=1)
cube_all = ndimage.rotate(cube_all,10,axes=(0,2),reshape=False,order=1)
cube_all[cube_all<0] = 0



u0 = (-1*cube_all*1e-6+1j*cube_all*1e-8)/1.5
u0=np.roll(u0,-15,axis=2)
u0=np.roll(u0,-10,axis=1)
v = np.arange(-ne//2,ne//2)/ne
[vx,vy,vz] = np.meshgrid(v,v,v)
v = np.exp(-10*(vx**2+vy**2+vz**2))
fu = np.fft.fftshift(np.fft.fftn(np.fft.fftshift(u0)))
u0 = np.fft.fftshift(np.fft.ifftn(np.fft.fftshift(fu*v))).astype('complex64')

!mkdir -p data
np.save('data/u',u0)
u = u0
# u = np.load('data/u.npy') # if already exists

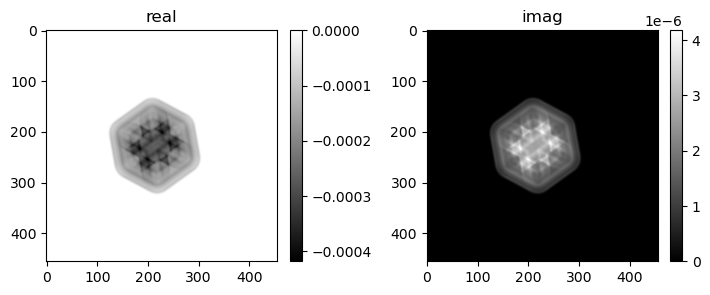

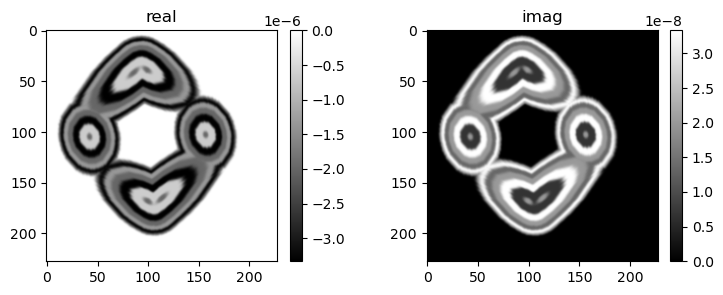

mshow_complex(u[ne//2,ne//4:-ne//4,ne//4:-ne//4])

## Compute tomographic projection data via the Fourier based method, $\mathcal{R}u$:

Ru = R(u, theta, center*ne/n)
Ru = Ru.swapaxes(0, 1)
mshow_complex(Ru[0])

## Convert it to the transmittance function $e^{\frac{2\pi j}{\lambda} \mathcal{R} u }$

psi = np.exp(2*np.pi*1j/wavelength*voxelsize*Ru)

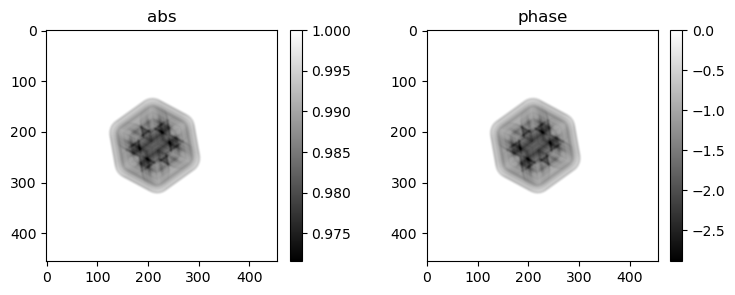

mshow_polar(psi[0])

## Read a reference image previously recovered by the NFP (Near-field ptychogarphy) method at ID16A.

!wget -nc https://g-110014.fd635.8443.data.globus.org/holotomocupy/examples_synthetic/data/prb_id16a/prb_abs_2048.tiff -P ../data/prb_id16a
!wget -nc https://g-110014.fd635.8443.data.globus.org/holotomocupy/examples_synthetic/data/prb_id16a/prb_phase_2048.tiff -P ../data/prb_id16a

prb_abs = read_tiff(f'../data/prb_id16a/prb_abs_2048.tiff')[0:1]
prb_phase = read_tiff(f'../data/prb_id16a/prb_phase_2048.tiff')[0:1]
prb = prb_abs*np.exp(1j*prb_phase).astype('complex64')


for k in range(2):
    prb = prb[:, ::2]+prb[:, 1::2]
    prb = prb[:, :, ::2]+prb[:, :, 1::2]/4

prb = prb[:, 128-pad:-128+pad, 128-pad:-128+pad]
prb /= np.mean(np.abs(prb))
# prb[:]=1

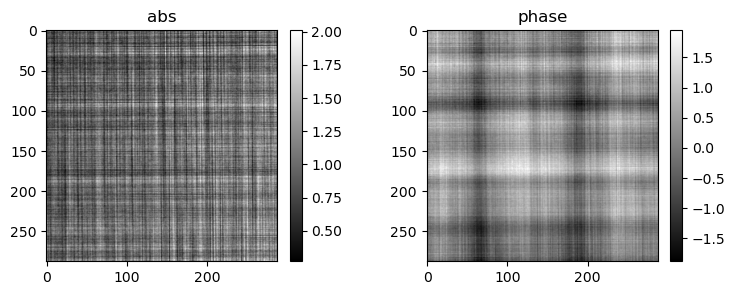

mshow_polar(prb[0])

File ‘../data/prb_id16a/prb_abs_2048.tiff’ already there; not retrieving.

File ‘../data/prb_id16a/prb_phase_2048.tiff’ already there; not retrieving.

# Smooth the probe, the loaded one is too noisy

v = np.arange(-(n+2*pad)//2,(n+2*pad)//2)/(n+2*pad)
[vx,vy] = np.meshgrid(v,v)
v=np.exp(-5*(vx**2+vy**2))
prb = np.fft.fftshift(np.fft.fftn(np.fft.fftshift(prb)))
prb = np.fft.fftshift(np.fft.ifftn(np.fft.fftshift(prb*v)))
prb = prb.astype('complex64')

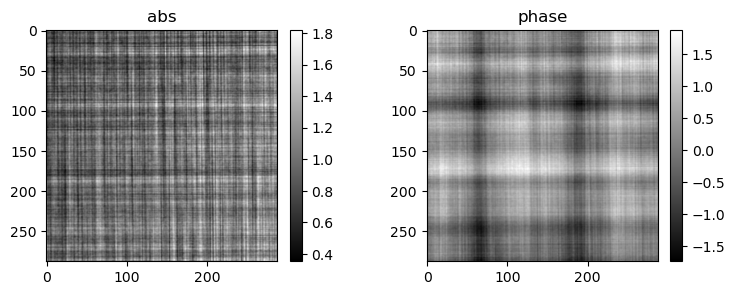

mshow_polar(prb[0])

# Shifts/drifts

# random sample shifts for each projection (note:before magnification)
shifts = (np.random.random([ntheta, ndist, 2]).astype('float32')-0.5)*n/32
# drift of the probe during collection of projections
shifts_ref = (np.random.random([ntheta, ndist, 2]).astype('float32')-0.5)*n/256  # typically small
# drift of the probe during collection of references
shifts_ref0 = (np.random.random([1, ndist, 2]).astype('float32')-0.5)*n/256

# use the first ref image as the global reference for illumination
shifts_ref0[0, 0, :] = 0

# shift of the sample when moving between differen planes
shifts_drift = np.zeros([ntheta, ndist, 2], dtype='float32')
# use the first plane as the global reference for illumination
shifts_drift[:, 1] = np.array([0.6, 0.3])
shifts_drift[:, 2] = np.array([-1.3, 1.5])
shifts_drift[:, 3] = np.array([2.3, -3.5])

np.save('data/shifts', shifts)
np.save('data/shifts_drift', shifts_drift)
np.save('data/shifts_ref', shifts_ref)
np.save('data/shifts_ref0', shifts_ref0)

# sum sample random and drift shifts for simulations
shifts += shifts_drift

### Compute holographic projections for all angles and all distances
#### $d=\left|\mathcal{G}_{z_j}((\mathcal{G}_{z'_j}S_{s'_{kj}}q)(M_j S_{s_{kj}}\psi_k))\right|_2^2$, and reference data $d^r=\left|\mathcal{G}_{z'_j}S_{s^r_{j}}q\right|$

from holotomocupy.chunking import gpu_batch

@gpu_batch
def fwd_holo(psi, shifts_ref, shifts, prb):
    # print(prb.shape)
    prb = cp.array(prb)

    data = cp.zeros([psi.shape[0],ndist,n,n],dtype='complex64')
    for i in range(ndist):
        # ill shift for each acquisition
        prbr = cp.tile(prb,[psi.shape[0],1,1])

        prbr = S(prbr, shifts_ref[:,i])
        # propagate illumination
        prbr = G(prbr, wavelength, voxelsize, distances2[i])
        # object shift for each acquisition
        psir = S(psi, shifts[:,i]/norm_magnifications[i])

        # scale object
        if ne != n:
            psir = M(psir, norm_magnifications[i]*ne/(n+2*pad), n+2*pad)

        # multiply the ill and object
        psir *= prbr

        # propagate both
        psir = G(psir, wavelength, voxelsize, distances[i])
        data[:,i] = psir[:,pad:n+pad,pad:n+pad]
    return data

@gpu_batch
def _fwd_holo0(prb, shifts_ref0):
    data = cp.zeros([1,ndist, n, n], dtype='complex64')
    for j in range(ndist):
        # ill shift for each acquisition
        prbr = S(prb, shifts_ref0[:,j])
        # propagate illumination
        data[:,j]=G(prbr, wavelength, voxelsize, distances[0])[:,pad:n+pad,pad:n+pad]
    return data

def fwd_holo0(prb):
    return _fwd_holo0(prb, shifts_ref0)

# print(prb.shape)
fpsi = fwd_holo(psi,shifts_ref,shifts,prb)
fref = fwd_holo0(prb)

### Take squared absolute value to simulate data on the detector and a reference image

data = np.abs(fpsi)**2
ref = np.abs(fref)**2

### Visualize data

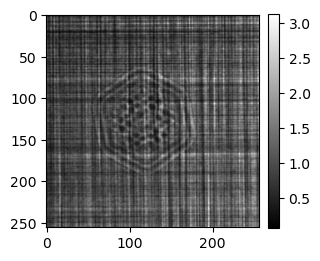

for k in range(ndist):
    mshow(data[0,k])

### Visualize reference images

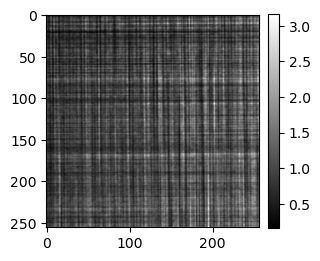

for k in range(ndist):
    mshow(ref[0,k])

### Save data, reference images

for k in range(len(distances)):
    write_tiff(data[:,k],f'data/data_3d_ald_{n}_{k}')
for k in range(len(distances)):
    write_tiff(ref[:,k],f'data/ref_3d_ald_{n}_{k}')
